The PC method pile-pulling machine is a pile-working machine that uses the power of a hydraulic cylinder to pull out steel pipes from the ground. Its working principle is that Larsen piles are combined with steel pipes to form a cross-section composite pile. This kind of machine is mainly suitable for supporting structures in foundation pit support projects. It can be used as a reference for road parts of construction projects, municipal projects, port projects, water conservancy projects and foundation pits adjacent to water.
Features
[popoutContact title="Inquire Now"]

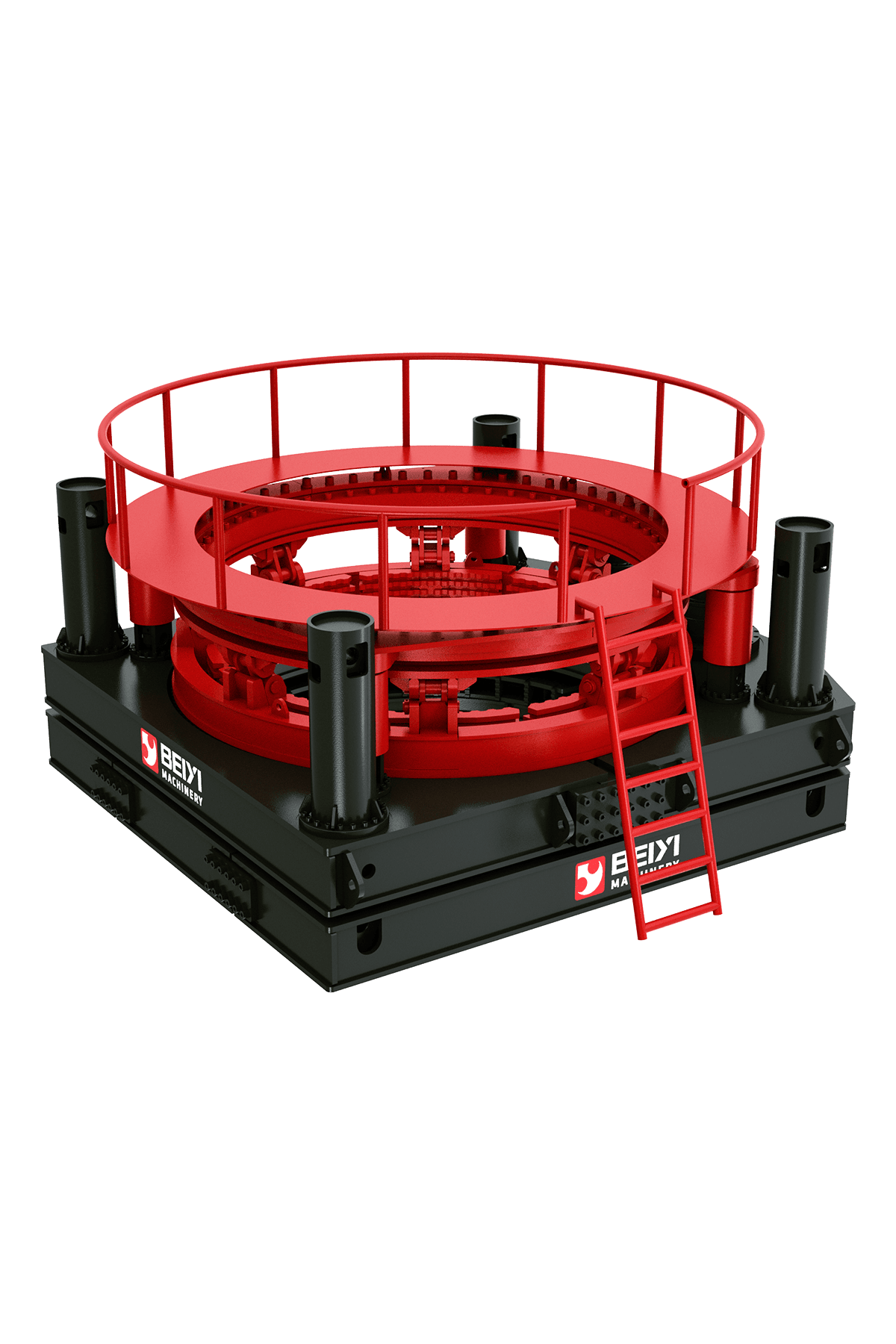

BeiYi PC method pile-pulling machine is a pile-working machine that uses the power of a hydraulic cylinder to pull out steel pipes from the ground.
The following is a detailed display of our products to provide customers with high-quality products and services in the construction machinery industry.
Our product is continuously evolving, and changes due to technological reasons will not be separately notified.
| Model | Unit | BY-PTM830 | BY-PTM920 |
| Number of Lifting Cylinders | pieces | 2 | 2 |
| Cylinder Stroke | mm | 900 | 900 |
| Clamp the Number of Cylinders | pieces | 2 | 2 |
| Maximum Holding Force | t | 300(below 32MPa) | 300 |
| Casing Diameter | mm | 830 | 920 |
| Maximum Pull-out Force | t | 600 (below 32MPa) | 650 (below 32MPa) |
| Weight（excluding hydraulic station) | kg | 8000 | 8900 |
| Dimensions Length*Width* Height） | m | 3x2x2(shipping dimensions) | 3x2x2(shipping dimensions) |
*1. Includes average mounting bracket and standard wear parts
*2. check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
We offer a diverse range of accessories to cater to unexpected requirements.
[popoutContact title="Send Your Inquiry Now"]
BeiYi pipe extractor is ideal for supporting structures in foundation pit projects, including construction, municipal, port, water conservancy projects, and foundation pits adjacent to water, accommodating various pile types and site conditions.
If you have any questions, feel free to consult us. We offer prompt and professional service, and your satisfaction is our ultimate goal.
Our expert team ensures a smooth installation process and we provide more than enough easily replaceable accessories for long-term reliability.
7*24 online service, face-to-face video online guidance,offline door-to-door after-sales service, sufficient and easy-to-replace accessories.
BeiYi Machinery specializes in providing customers with one-stop construction solutions. One division of China Railway Corporation has partnered with Beiyi Machinery for a tube extraction project. On September 23rd, Beiyi Machinery arranged for technical personnel to head to the construction site.
Beiyi Machinery used its 830 hydraulic pipe extractor to efficiently remove 20 deeply embedded 630mm steel pipe piles at a Shanghai overpass project. The team quickly responded, conducted a site survey, and trained operators. With over 20 years of R&D experience, Beiyi remains dedicated to innovation and exceptional customer service in global construction projects.
