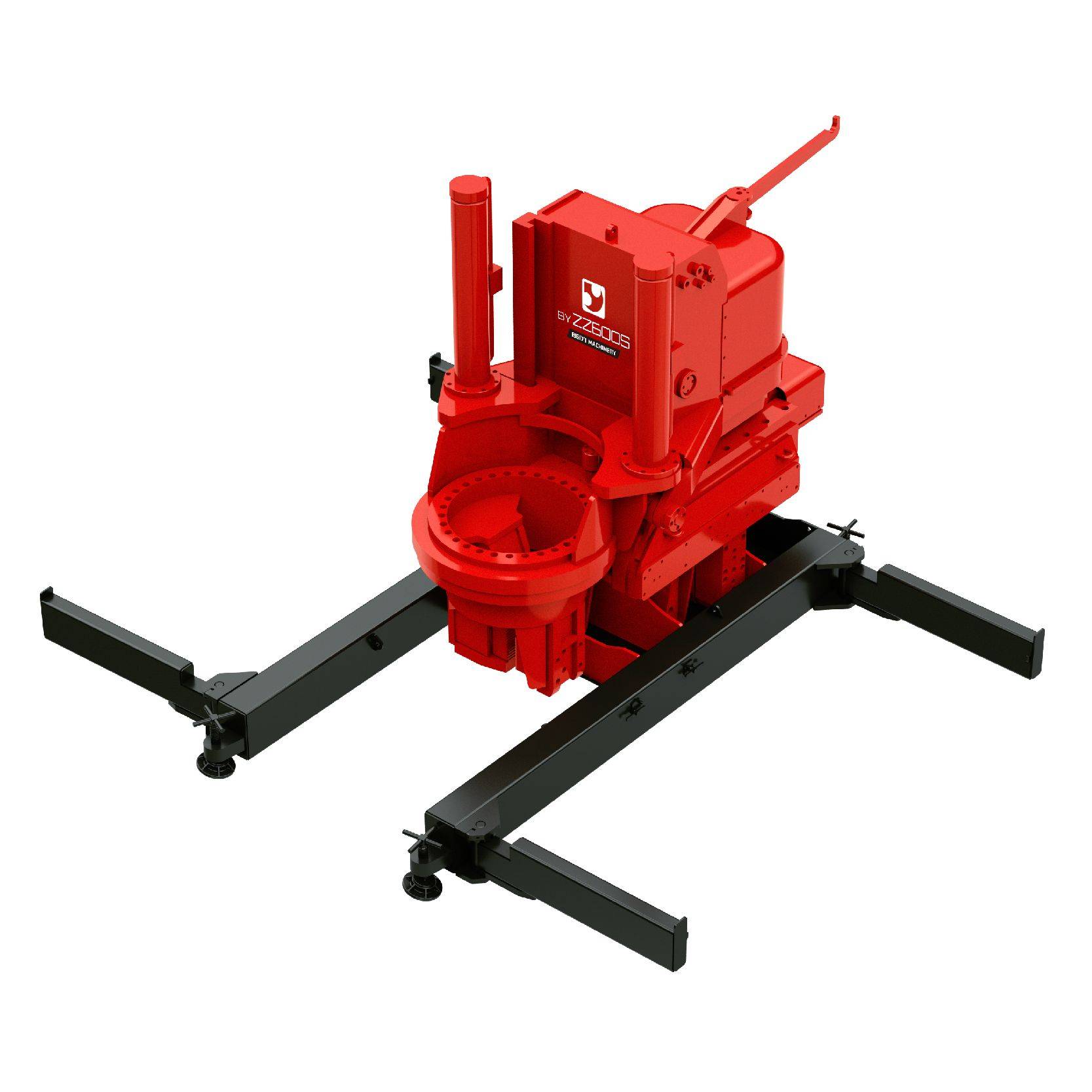

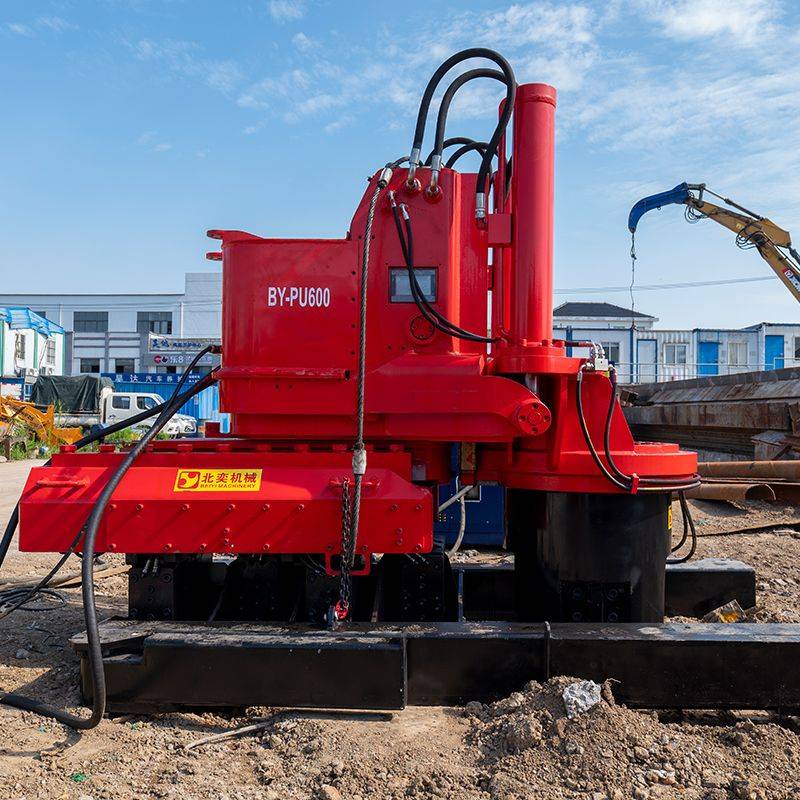

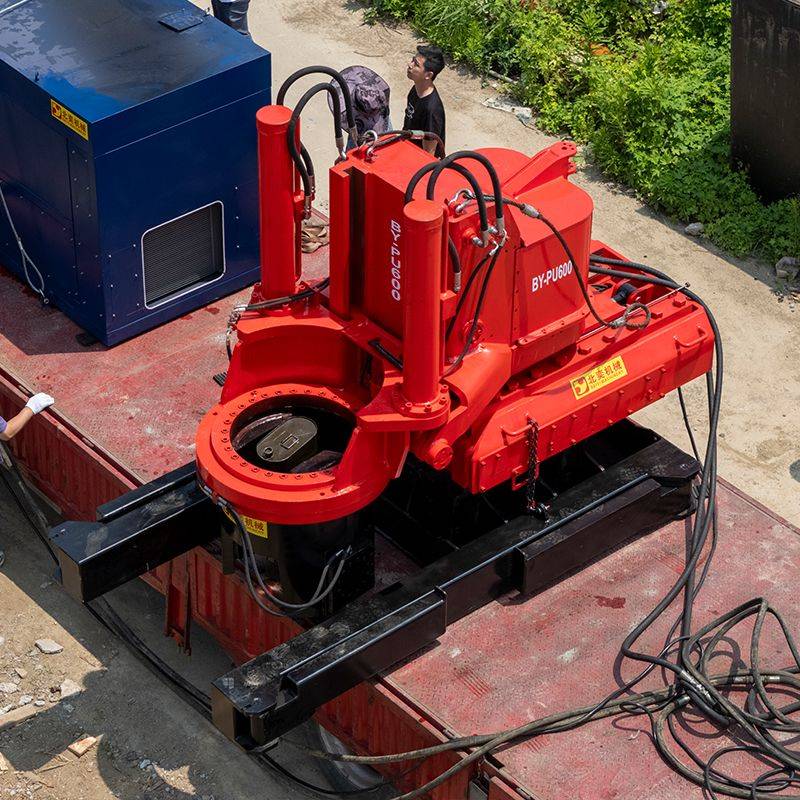

The BY-ZZ600S Static Press Pile Driver is a new-generation piling solution developed with a fully modular design concept. You benefit from standardized structural components that enhance system compatibility while improving overall versatility and operational efficiency. The optimized power and control system ensures stable performance and reliable operation in demanding jobsite conditions.

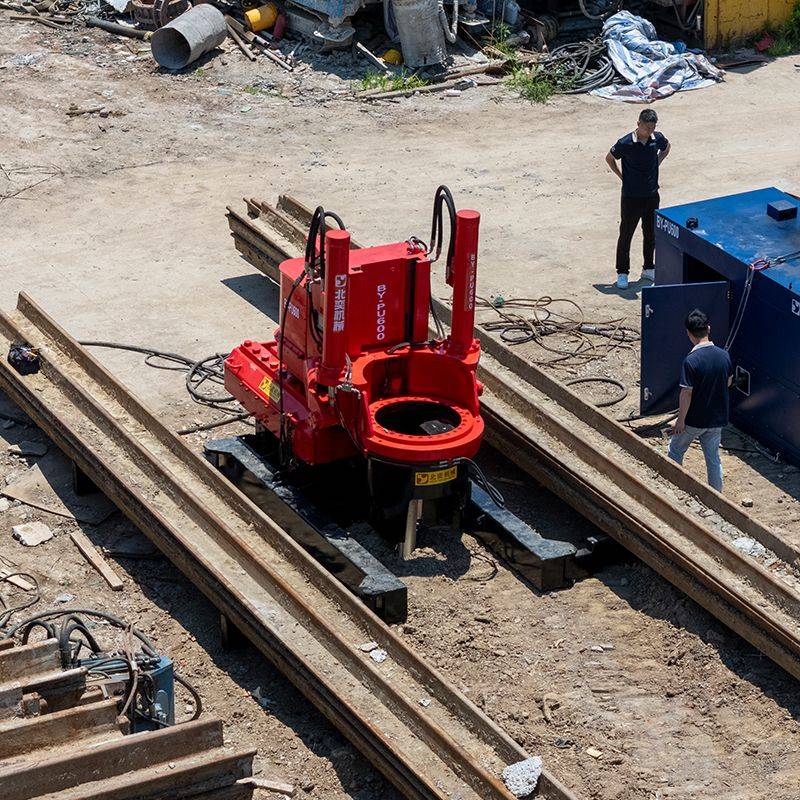

You can efficiently install U-shaped steel sheet piles with widths from 400–600 mm, achieving smooth press-in operations even in hard geological conditions. The BY-ZZ600S supports both standard-type (400 mm) and economic-type (600 mm) sheet piles, giving you greater flexibility across different project requirements.
By combining strong hydraulic pressing force with precise control, you achieve high construction accuracy, reduced environmental impact, and improved safety. The compact and modular structure also makes transportation, assembly, and on-site operation more efficient, allowing you to maximize productivity across a wide range of foundation projects.
Features
[popoutContact title="Send Your Inquiry Now"]

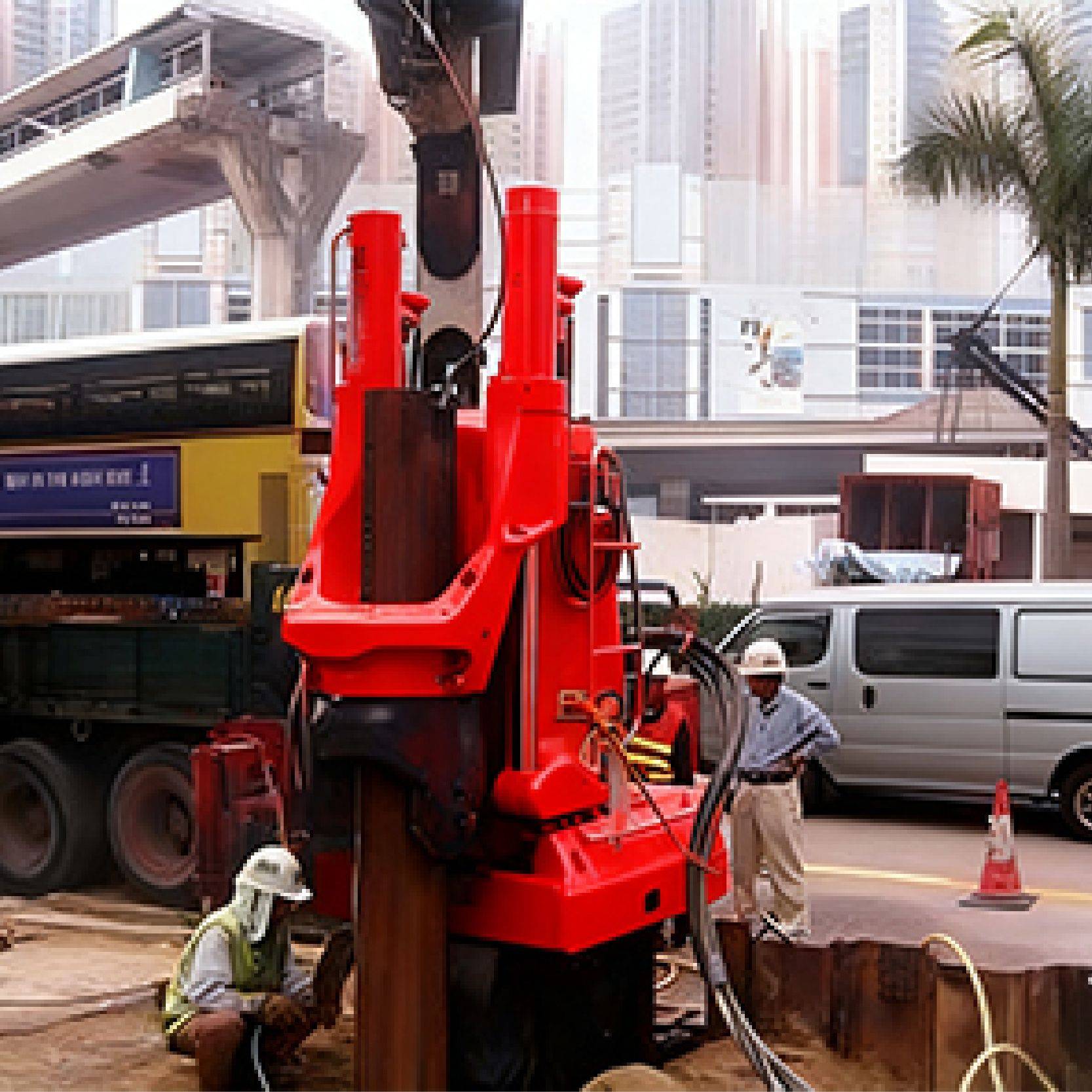

You install piles quietly and precisely using static hydraulic pressure instead of impact or vibration. The Hydraulic Static Pile Driver helps you achieve safe, efficient, and environmentally friendly piling in sensitive and space-restricted construction sites.
Quiet & Vibration-Free
You can operate in urban or sensitive areas without noise or vibrations.
Precise Pile Control

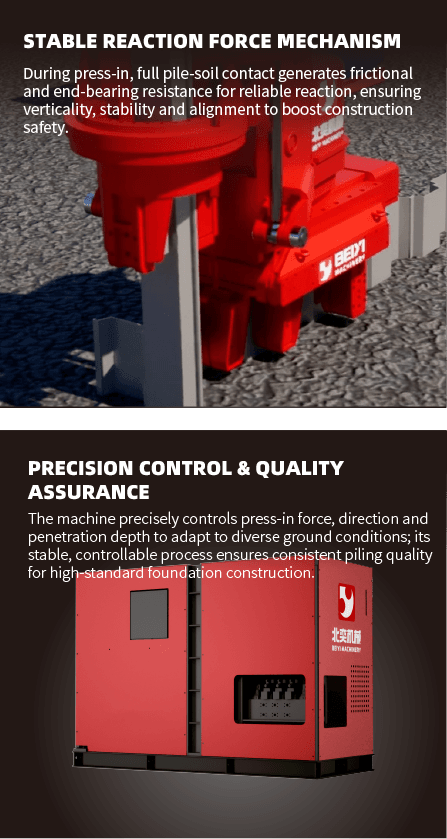

You monitor and control the piling force to ensure verticality and quality.
Protect Surrounding Structures
You avoid impact on nearby buildings or underground utilities.
Adaptable to Various Soils
You can work efficiently in clay, silt, soft soil, and other ground conditions.
Safe & Efficient Operation
You rely on mechanized operation to reduce manual labor and enhance safety.
[popoutContact title="Send Your Inquiry Now"]
The following is a detailed display of our products to provide customers with high-quality products and services in the construction machinery industry.
Our product is continuously evolving, and changes due to technological reasons will not be separately notified.

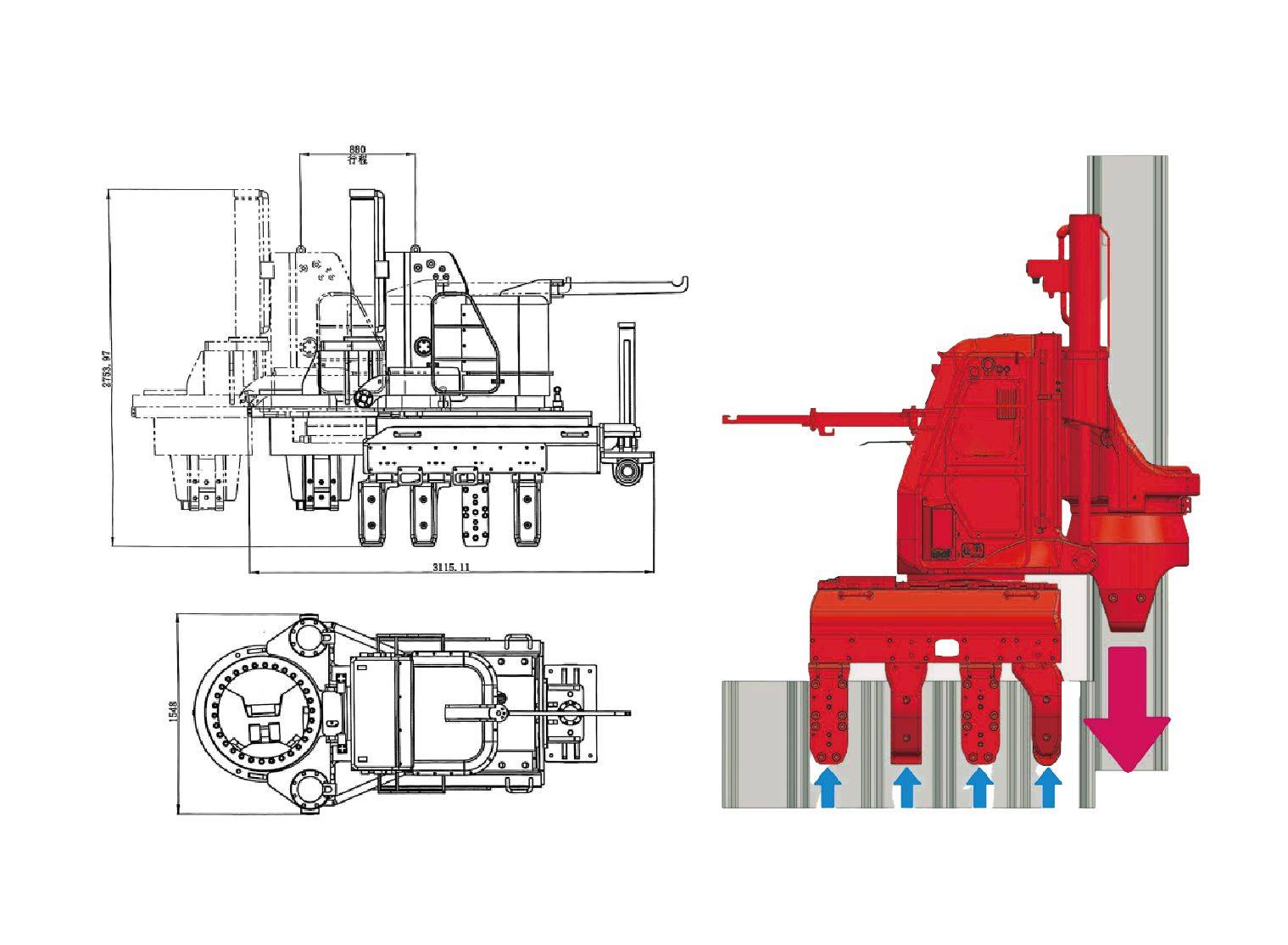

Static Pressure Pile Driver – Main Machine | |
|---|---|
Item | Specification |
Suitable pile material | U-shaped steel sheet piles (400 mm wide), Type II, Type III, and Type IV |
Pressing force | 900 kN |
Extraction force | 1100 kN |
Stroke | 750 mm |
Pressing speed | 2.6–35.7 m/min |
Lifting speed | 2.0–26.9 m/min |
Operation method | Wireless remote control / Manual control panel |
Weight (single press-in configuration) | 6,945 kg |
Weight (with water jet & press-in configuration) | 7,345 kg |
Power Unit | |
|---|---|
Item | Specification |
Power source | Diesel engine |
High power mode | 195 kW (265 hp) / 1750 rpm |
Eco mode | 173 kW (265 hp) / 1650 rpm |
Eco-friendly mode | 152 kW (265 hp) / 1450 rpm |
Diesel tank capacity | 590 L |
Hydraulic oil tank capacity | 500 L |
Weight | 6,490 kg (standard 20 m hydraulic hoses) |
Reaction Base | |
|---|---|
Item | Specification |
Weight | 1,580 kg |
Water Jet Scroll | |
|---|---|
Item | Specification |
Applicable pile length | Standard 17 m (maximum 27 m) |
Weight | 500 kg |
*1. Includes average mounting bracket and standard wear parts
*2. check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
We offer a diverse range of accessories to cater to unexpected requirements.
[popoutContact title="Send Your Inquiry Now"]

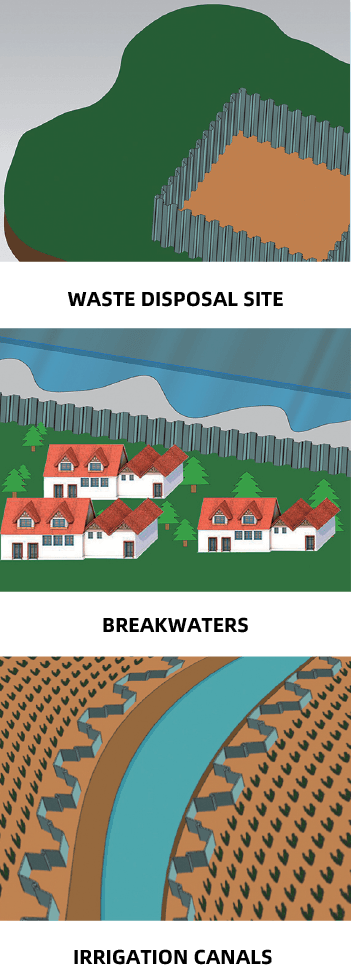

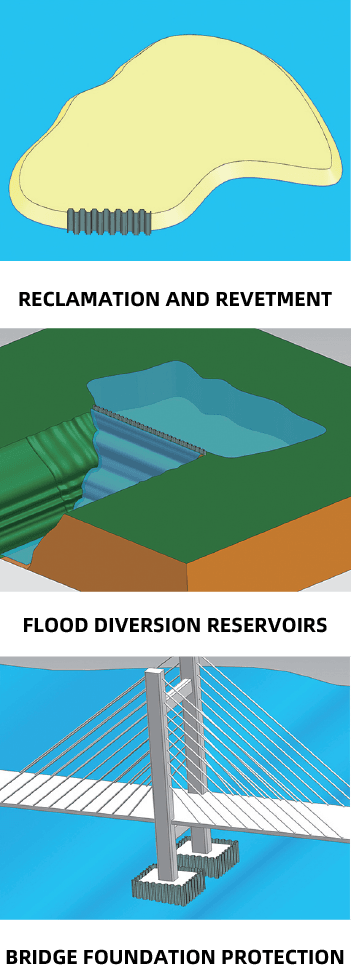

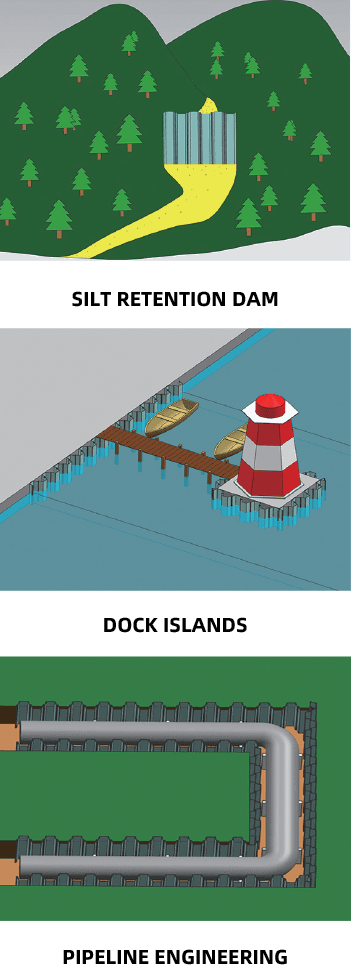

You can use our static pressure pile driver for a wide range of civil engineering projects. It is ideal for building silt retention dams, reclamation and revetment works, road retaining walls, and flood diversion reservoirs. It also helps reinforce dock islands, breakwaters, bridge foundations, pipelines, irrigation canals, and other soil stabilization projects. With this machine, you can ensure safe, efficient, and durable pile driving in complex environments.
If you have any questions, feel free to consult us. We offer prompt and professional service, and your satisfaction is our ultimate goal.
Our expert team ensures a smooth installation process and we provide more than enough easily replaceable accessories for long-term reliability.
7*24 online service, face-to-face video online guidance,offline door-to-door after-sales service, sufficient and easy-to-replace accessories.
