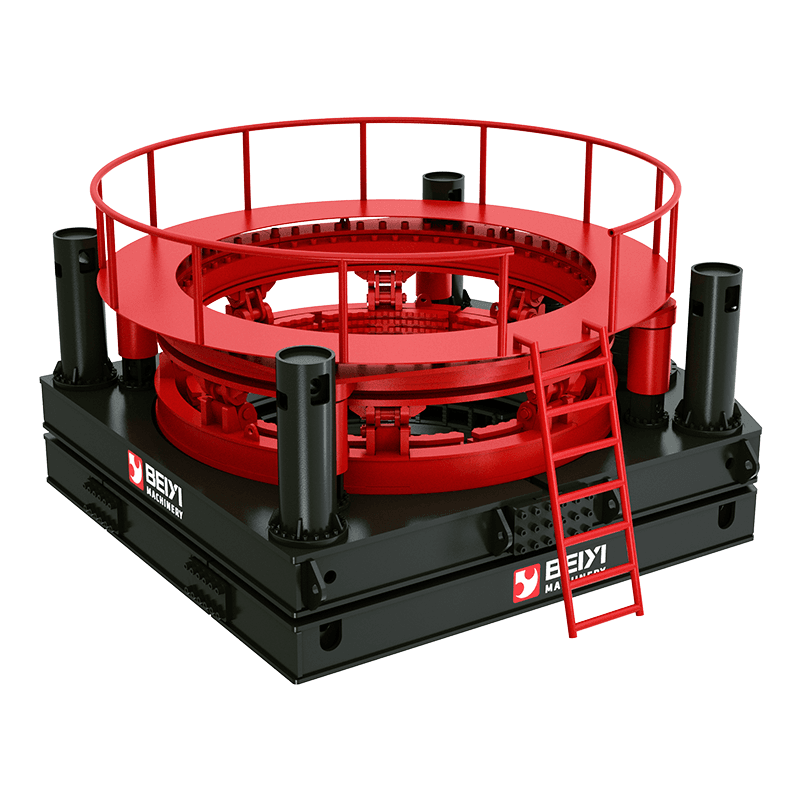

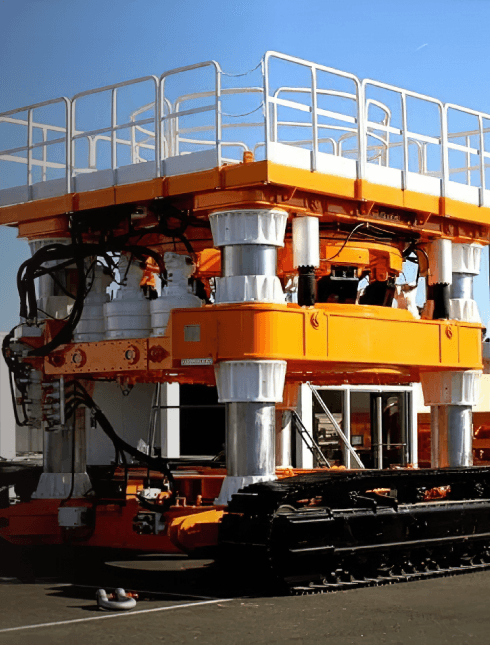

BEIYI Full Casing Rotary Drilling Rig uses advanced full casing construction technology to deliver stable, precise, and environmentally friendly drilling, even in low-headroom and confined-space projects.
By driving the casing with 360° rotary motion, the system reduces penetration resistance, ensures vertical accuracy, and minimizes ground disturbance — without slurry pollution.
Features
[popoutContact title="Send Your Inquiry Now"]
A 360° full casing rotary drilling rig for low-headroom sites, delivering precise drilling with minimal ground disturbance.
HYDRAULIC SINKING & EXTRACTION
Smooth and efficient casing insertion and pulling
LOW-HEADROOM DESIGN
Ideal for confined spaces and restricted-height sites
HIGH VERTICAL ACCURACY

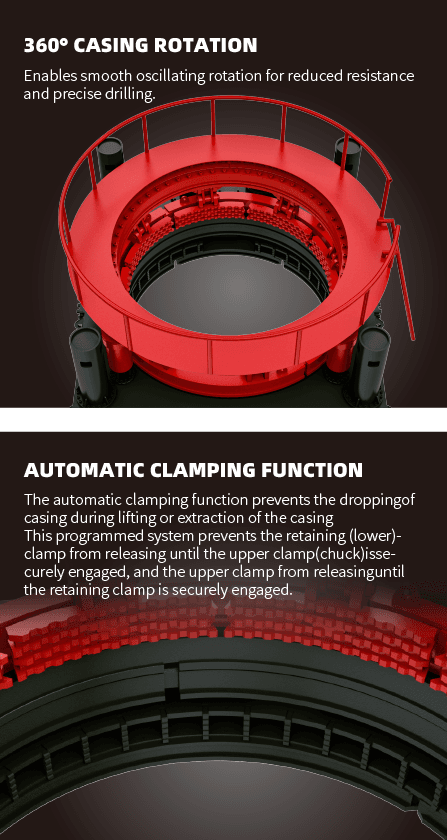

Wedge clamping and hydraulic alignment ensure precision
SLURRY-FREE CONSTRUCTION
Environmentally friendly with minimal ground disturbance
COMPLEX GROUND PERFORMANCE
Reliable in soft soil, sand, gravel, karst, and backfill
[popoutContact title="Send Your Inquiry Now"]
The following is a detailed display of our products to provide customers with high-quality products and services in the construction machinery industry.
Our product is continuously evolving, and changes due to technological reasons will not be separately notified.
Main Machine Parameters | |||
|---|---|---|---|
Item | Description | Unit | Specification |
Drilling Diameter | Drilling diameter | mm | Ø2000 – Ø2500 |
Rotary Torque | Rotary torque | kN·m | 9080 / 5368 / 3034 (gear shift) / Max 10590 |
Rotating Speed | Rotating speed | rpm | 0.7 / 1.2 / 2.0 |
Sleeve Downforce | Lower pressure of sleeve | kN | Max 1100 (adjustable) + self-weight 500 kN |
Sleeve Pulling Force | Pulling force of sleeve | kN | 7237 (nominal) / Max 8370 |
Press Pulling Stroke | Pressure pulling stroke | mm | 500 |
Machine Weight | Main machine weight | ton | 75 |
Hydraulic Power Station | |||
|---|---|---|---|
Item | Description | Unit | Specification |
Engine Model | Engine model | — | WP4.1D80E200 |
Engine Power | Engine power | kW | 80 |
Fuel Consumption | Engine fuel consumption rate | g/kW·h | ≤235 ±3% |
Max Engine Torque | Engine maximum torque | N·m | 440 |
Hydraulic Pressure | Hydraulic system pressure | MPa | 32 |
Power Station Weight | Weight | ton | 1.8 |
Control Mode | Control mode | — | Standard wireless remote control |
*1. Includes average mounting bracket and standard wear parts
*2. check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

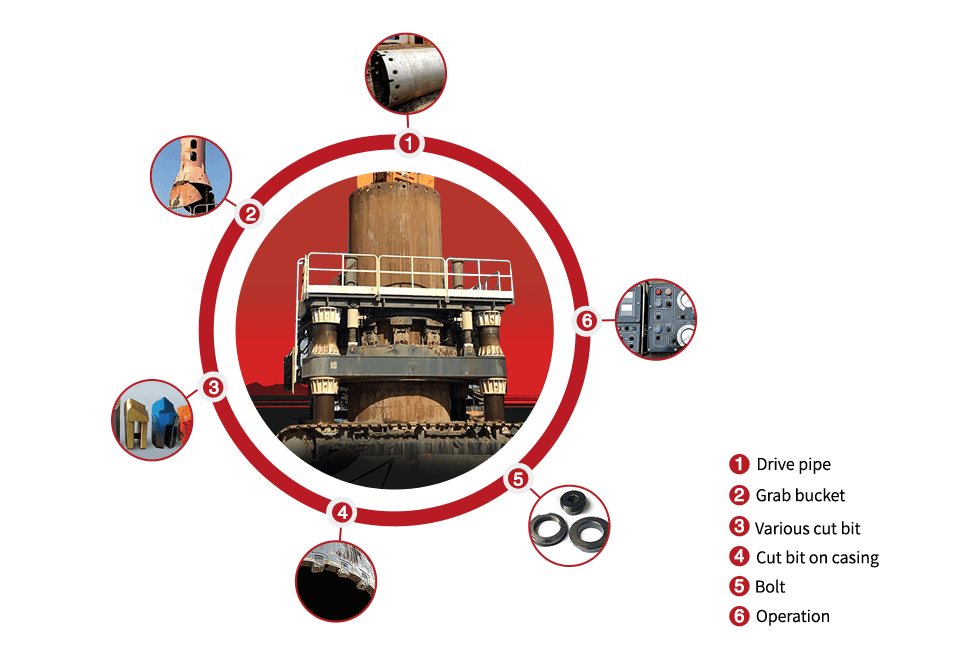

We offer a diverse range of accessories to cater to unexpected requirements.
[popoutContact title="Send Your Inquiry Now"]

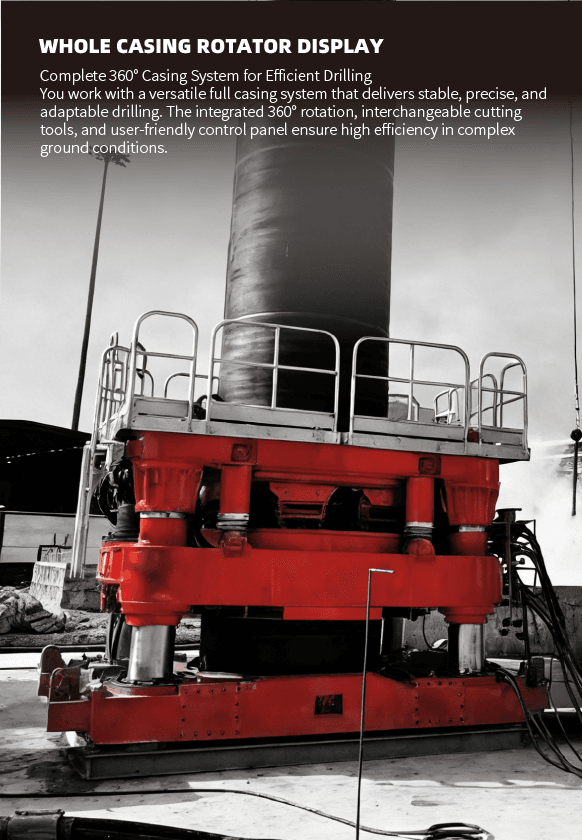

You can deploy the full casing rotary drilling rig in a variety of challenging conditions, including low-headroom urban sites, soft soil, sand and gravel layers, cobbles, karst, backfill, rivers, and lakes. It ensures precise, stable, and environmentally friendly drilling for infrastructure, bridge, and municipal projects.
If you have any questions, feel free to consult us. We offer prompt and professional service, and your satisfaction is our ultimate goal.
Our expert team ensures a smooth installation process and we provide more than enough easily replaceable accessories for long-term reliability.
7*24 online service, face-to-face video online guidance,offline door-to-door after-sales service, sufficient and easy-to-replace accessories.
