The hydraulic pile driver is a construction machine that employs hydraulic technology to press reinforced concrete piles into the ground. It achieves this by utilizing high-frequency vibration, which is transmitted to the pile body through the clamp. This process alters the soil structure around the pile, liquefying it and reducing friction, enabling it to be easily pressed into the soil by the machine's weight and vibration. For pile extraction, the vibrating pile driver leverages the excavator's lifting force.
Features
[popoutContact title="Send Your Inquiry Now"]
BeiYi vibratory pile driver is a fast and efficient tool for pile foundation projects, using advanced vibration technology. It adapts to various soils, offering precise control and easy operation.

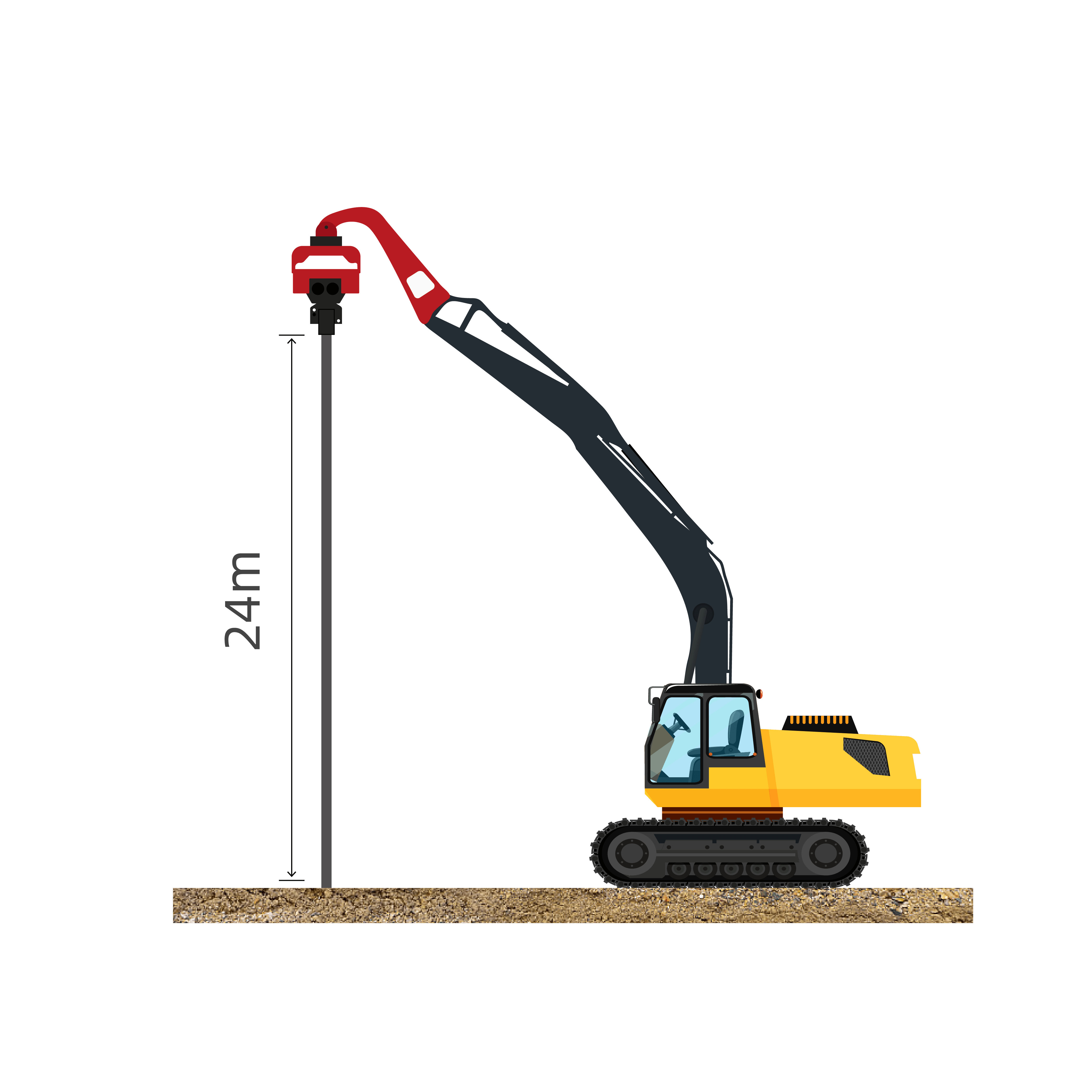

Piling length up to 24m
Motor with four throwing blocks, secondary vibration fast speed and high efficiency
The clamping nozzle can be customized to meet different scenarios
Economical, up to 8 types of jaws can be replaced
Made of high-strength alloy steel, it has high hardness
The following is a detailed display of our products to provide customers with high-quality products and services in the construction machinery industry.
Our product is continuously evolving, and changes due to technological reasons will not be separately notified.
| Model | Unit | BY-VH150 | BY-VH250 | BY-VH330 | BY-VH400 | BY-VH450 |
| Eccentric moment | Nm | 22 | 40 | 50 | 65 | 85 |
| Frequency | Rpm | 2500 | 2800 | 2800 | 2800 | 2800 |
| Excitation Force | Ton | 24 | 36 | 45 | 58 | 75 |
| Weight of main body | Kg | 1 300 | 2800 | 3000 | 3300 | 3300 |
| Operating Pressure of oil system | Bar | 220-320 | 280-330 | 280-330 | 280-330 | 280-330 |
| Flow Demand for Hydraulic oil system | Lpm | 110-160 | 150-240 | 168-250 | 210-260 | 255-280 |
| Excavator | Ton | 12-18 | 18-23 | 24-30 | 31-35 | 36-50 |
| Piling Height of standard am | M | 5 | 6 | 6-7 | 7-8 | 8-9 |
| Max pile length | M | 9 | 13 | 16 | 18 |
*1. Includes average mounting bracket and standard wear parts
*2. check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
The claping nozzle can be customized to meet different scenarios.
We offer a diverse range of accessories to cater to unexpected requirements.
[popoutContact title="Send Your Inquiry Now"]
BeiYi vibratory pile driver is a fast and efficient tool for pile foundation projects, using advanced vibration technology. It adapts to various soils, offering precise control and easy operation.
If you have any questions, feel free to consult us. We offer prompt and professional service, and your satisfaction is our ultimate goal.
Our expert team ensures a smooth installation process and we provide more than enough easily replaceable accessories for long-term reliability.
7*24 online service, face-to-face video online guidance,offline door-to-door after-sales service, sufficient and easy-to-replace accessories.
If the soil conditions are good, a 6-meter photovoltaic pile can be driven in about 10 minutes. Steel sheet piles can be driven even faster.
It depends on the excavator's tonnage. For 20-30 ton excavators, it can lift and drive 2-3 tons. For 30-40 ton excavators, it can handle 3-4-5 tons. Heavier piles may require the assistance of a crane, and the excavator should be equipped with additional counterweights accordingly.
It is very convenient and easy. Just open the bearing cover on the gearbox and push it out. (A replacement video guide is provided.)
The instruction manual details the common maintenance requirements. An electronic version can be sent to the operator. Normally, for a new machine, after a week of use during the break-in period, the oil needs to be changed once. Each day before use, apply grease to all sleeve joints and check if any bolts are loose, tightening them if necessary. Subsequently, change the gearbox oil approximately every 200 hours of use.
Our pile drivers are only suitable as attachments for excavators.
Beiyi Machinery has partnered with an Indonesian glass manufacturer to enhance factory construction using their vibratory pile drivers. The collaboration highlights the global impact of Chinese manufacturing, with the client praising Beiyi for its product quality and after-sales service.
We helped a client in Changzhou overcome cost control issues, avoid the risks of second-hand equipment, and ensure equipment compatibility with complex soil conditions. By providing expert advice, online installation guidance, and reliable after-sales support, we ensured the smooth installation of 300mm diameter round piles within a tight project schedule.
